In Stage 1 of the project, I learned how to develop a basic pass in GCC. However, I may need to refine my methods for accurately counting the number of basic blocks and GIMPLE statements. In Stage 2 of the project, I was required to modify my pass to determine if a function had been cloned and to make decisions about whether it should be pruned.
Getting the testing code files
First, I got the testing code files from /public/spo600-test-clone.tgz. To get the file, I used the following command to unpack the tar archive file.
cd ~ ; tar xvf /public/spo600-test-clone.tgzThen, a folder named spo600 will appear in our home directory, which will contain the code to test.
Identify functions that have been cloned
In the test code, the Makefile is configured to instruct the compiler to generate a cloned version of the function scale_samples(). I attempted to identify the variant version of scale_samples using the following code.
objdump -d clone-test-x86-prune | grep 'scale_samples' > 'prune_inspect'
Next, I tried to find the cloned function in the Pass. In the Pass, I tried to use a vector to store all the function names in the file.
#include "config.h"
#include "system.h"
#include "coretypes.h"
#include "tree.h"
#include "tree-pass.h"
#include "cgraph.h"
#include "function.h"
#include "basic-block.h"
#include "gimple.h"
#include "gimple-iterator.h"
#include "cfg.h"
#include <vector>
namespace{
const pass_data pass_data_project = {
GIMPLE_PASS, /* type */
"pass_project", /* name */
OPTGROUP_NONE, /* optinfo_flags */
TV_NONE, /* tv_id */
PROP_cfg, /* properties_required */
0, /* properties_provided */
0, /* properties_destroyed */
0, /* todo_flags_start */
0, /* todo_flags_finish */
};
// Pass class
class pass_project : public gimple_opt_pass {
std::vector<const char*> functions;
public:
// Constructor
pass_project(gcc::context* ctxt) : gimple_opt_pass(pass_data_project, ctxt){};
unsigned int execute(function* fun) override{
cgraph_node* node = cgraph_node::get(fun->decl);
functions.push_back(node->name());
print_functions(dump_file);
return 0;
}
void print_functions(FILE* dump_file){
if(dump_file){
for(size_t i = 0; i < functions.size(); ++i){
fprintf(dump_file, "===== Function Name: %s =====\n\n", functions[i]);
}
}
}
};
}
//Custom pass creation function
gimple_opt_pass* make_pass_project(gcc::context* ctxt){
return new pass_project(ctxt);
}
Since execute() runs once for each function, the function names are added to the vector one by one as they are compiled. I also noticed that suffixes only appear when a function is either cloned or is a resolver.
After collecting all the function names, I compared them to identify the cloned functions. A name with a suffix usually indicates a cloned function. However, since resolvers also have suffixes, I had to check the suffix carefully to tell them apart.
#include "config.h"
#include "system.h"
#include "coretypes.h"
#include "tree.h"
#include "tree-pass.h"
#include "cgraph.h"
#include "function.h"
#include "basic-block.h"
#include "gimple.h"
#include "gimple-iterator.h"
#include "cfg.h"
#include <vector>
namespace{
const pass_data pass_data_project = {
GIMPLE_PASS, /* type */
"pass_project", /* name */
OPTGROUP_NONE, /* optinfo_flags */
TV_NONE, /* tv_id */
PROP_cfg, /* properties_required */
0, /* properties_provided */
0, /* properties_destroyed */
0, /* todo_flags_start */
0, /* todo_flags_finish */
};
// Pass class
class pass_project : public gimple_opt_pass {
std::vector<const char*> functions;
public:
// Constructor
pass_project(gcc::context* ctxt) : gimple_opt_pass(pass_data_project, ctxt){};
unsigned int execute(function* fun) override{
cgraph_node* node = cgraph_node::get(fun->decl);
if(dump_file){
int funIndex = findClonedFunctionByName(node->name());
if(funIndex == EOF){
fprintf(dump_file, "===== This is not a cloned function =====\n\n");
}else{
fprintf(dump_file, "===== This %s maight be a clonded function =====\n"
"===== Another function with the same name: %s =====\n\n", node->name(), functions[funIndex]);
}
}
functions.push_back(node->name());
return 0;
}
// Function recevie the name of current checking function
// Return the function name index in the vector if the vector has the same function name but it is not a resolver.
// Reutrn -1 if no function name match.
int findClonedFunctionByName(const char* checkingFunName){
if(functions.empty()){
return -1;
}
for(size_t i = 0; i < functions.size(); ++i){
size_t j = 0;
for(; checkingFunName[j] != '.' || checkingFunName[j] != '\0' ; ++j){
if(functions[i][j] != checkingFunName[j]){
break;
}
}
if(checkingFunName[j] == '.'){
const char* resolver = "resolver";
const char* suffix = &checkingFunName[j + 1];
for(size_t k = 0; suffix[k] != '\0'; ++k){
if(suffix[k] != resolver[k]){
return i;
}
}
}
}
return -1;
}
};
}
//Custom pass creation function
gimple_opt_pass* make_pass_project(gcc::context* ctxt){
return new pass_project(ctxt);
}
As the image shows, I successfully identified the cloned function.
Compare the Gimple representation
After several attempts, I changed the code to use std::string instead of const char* to store function names. This made it easier to manage memory and compare strings.
To check if two functions are identical, I compared the number of basic blocks and the GIMPLE statements in each function. If both matched, the functions were likely identical.
Based on this comparison, I could decide whether a function should be pruned. For each function, a message is written to the dump file to indicate whether it should be pruned or not. Some parts of the process are also logged in the dump file for reference.
#include "config.h"
#include "system.h"
#include "coretypes.h"
#include "tree.h"
#include "tree-pass.h"
#include "cgraph.h"
#include "function.h"
#include "basic-block.h"
#include "gimple.h"
#include "gimple-iterator.h"
#include "gimple-pretty-print.h"
#include "cfg.h"
#include <string>
#include <vector>
#include <map>
namespace{
const pass_data pass_data_project = {
GIMPLE_PASS, /* type */
"pass_project", /* name */
OPTGROUP_NONE, /* optinfo_flags */
TV_NONE, /* tv_id */
PROP_cfg, /* properties_required */
0, /* properties_provided */
0, /* properties_destroyed */
0, /* todo_flags_start */
0, /* todo_flags_finish */
};
// Pass class
class pass_project : public gimple_opt_pass {
std::vector<std::string> functions;
std::map<std::string, std::vector<int>> gimpleCodes;
std::map<std::string, int> bbCnts;
public:
// Constructor
pass_project(gcc::context* ctxt) : gimple_opt_pass(pass_data_project, ctxt){};
unsigned int execute(function* fun) override{
cgraph_node* node = cgraph_node::get(fun->decl);
std::string currFunName = node->name();
basic_block bb;
int bb_cnt = 0;
int funIndex = findClonedFunction(currFunName);
if(dump_file){
if(funIndex != EOF){
fprintf(dump_file, "===== This %s is a cloned function =====\n", currFunName.c_str());
}else{
fprintf(dump_file, "===== This is not a clonded function =====\n");
}
}
// Store function names
functions.push_back(currFunName);
// Store Gimple code
FOR_EACH_BB_FN(bb, fun){
bb_cnt++;
for(gimple_stmt_iterator gsi = gsi_start_bb(bb); !gsi_end_p(gsi); gsi_next(&gsi)){
gimple* stmt = gsi_stmt(gsi);
gimpleCodes[node->name()].push_back(gimple_code(stmt));
}
}
bbCnts[currFunName] = (bb_cnt);
if(dump_file){
if(funIndex == EOF){
fprintf(dump_file, "NOPRUNE: %s\n\n", removeSuffix(currFunName).c_str());
}else{
fprintf(dump_file, "%s: %s\n\n", isIdenticalFunction(currFunName, funIndex) ? "PRUNE" : "NOPRUNE", removeSuffix(currFunName).c_str());
}
}
return 0;
}
// Function recevie the name of current checking function
// Return the function name index in the vector if the vector has the same function name but it is not a resolver.
// Reutrn -1 if no function name match.
int findClonedFunction(std::string checkingFunName){
if(functions.empty()){
return -1;
}
size_t dotPos = checkingFunName.find('.');
std::string funName = checkingFunName.substr(0, dotPos);
std::string suffix = "";
if(dotPos != std::string::npos){
suffix = checkingFunName.substr(dotPos + 1);
}
for(size_t i = 0; i < functions.size(); ++i){
if(funName == functions[i] && suffix != "resolver"){
return i;
}
}
return -1;
}
bool isIdenticalFunction(std::string currFunName, int orgFunIndex){
fprintf(dump_file, "========== Comparing Original Function and the Cloned Function ==========\n");
fprintf(dump_file, "*** Compare Basic Block ***\n");
fprintf(dump_file, "Current Function Basic Block: %d\n"
"Original Function Basic Block: %d\n", bbCnts[currFunName], bbCnts[functions[orgFunIndex]]);
if(bbCnts[currFunName] != bbCnts[functions[orgFunIndex]]){
fprintf(dump_file, "*** Differnt amount of Basic Blocks ***\n");
return false;
}
fprintf(dump_file, "*** They have same amount of Basic Block ***\n");
fprintf(dump_file, "Cloned FUnction Gimple code(Current) | Orignal Function Gimple code\n");
for(size_t i = 0; i < gimpleCodes[currFunName].size(); ++i){
if(gimpleCodes[currFunName][i] == gimpleCodes[functions[orgFunIndex]][i]){
fprintf(dump_file, "%d | %d\n", gimpleCodes[currFunName][i], gimpleCodes[functions[orgFunIndex]][i]);
}else{
return false;
}
}
return true;
}
std::string removeSuffix(std::string fullName){
size_t dotPos = fullName.find('.');
return dotPos != std::string::npos ? fullName.substr(0, dotPos) : fullName;
}
};
}
//Custom pass creation function
gimple_opt_pass* make_pass_project(gcc::context* ctxt){
return new pass_project(ctxt);

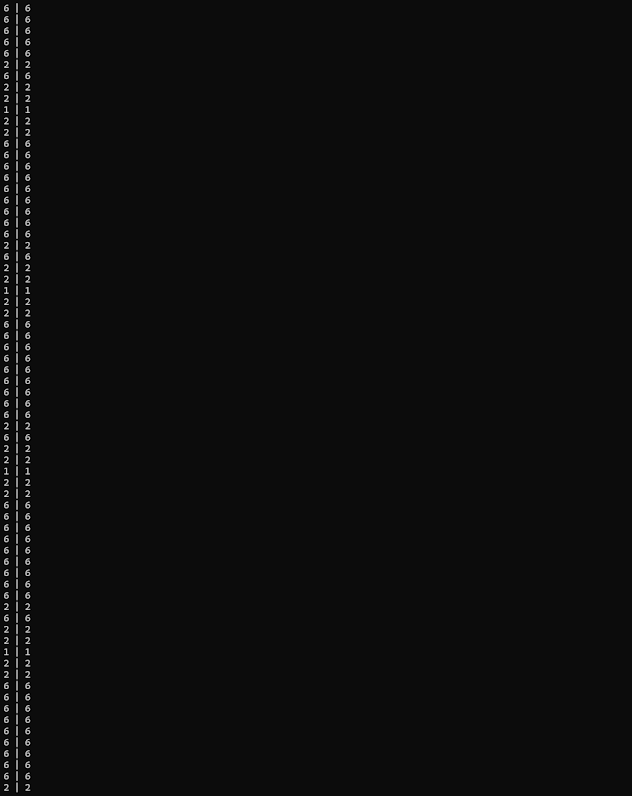

}The output in the dump file for the clone-text-x86-prune of the pass will look like the following:
The output in the dump file for the clone-text-x86-noprune of the pass will look like the following:
Since the output for the other functions is the same, I’m only showing the result for the cloned function.
Reflection
This stage of the project was very challenging and time-consuming, but I learned a lot about how the GCC compiler works. I now have a better understanding of how optimization works. The execute() function in a GIMPLE pass runs once for each function, allowing us to perform analysis or transformations. By looping through each basic block and each GIMPLE statement, I was able to inspect the function’s code. This made it possible to analyze whether functions are identical. While I’m aware that there are more elements I could compare for a deeper analysis, I believe my current approach is sufficient to determine if two functions are identical.
